商品详情
产品概述：

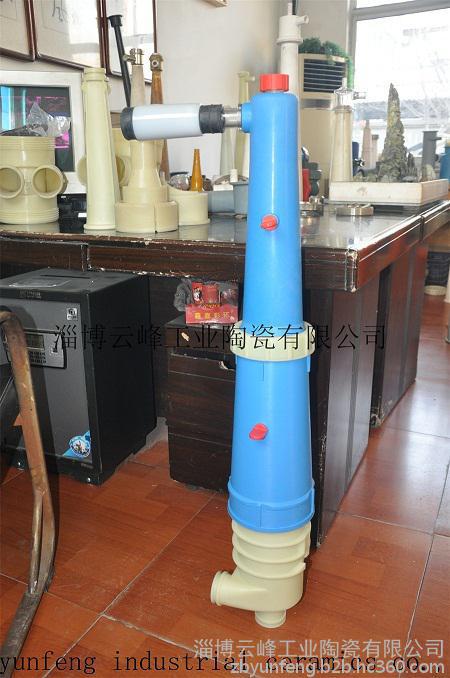

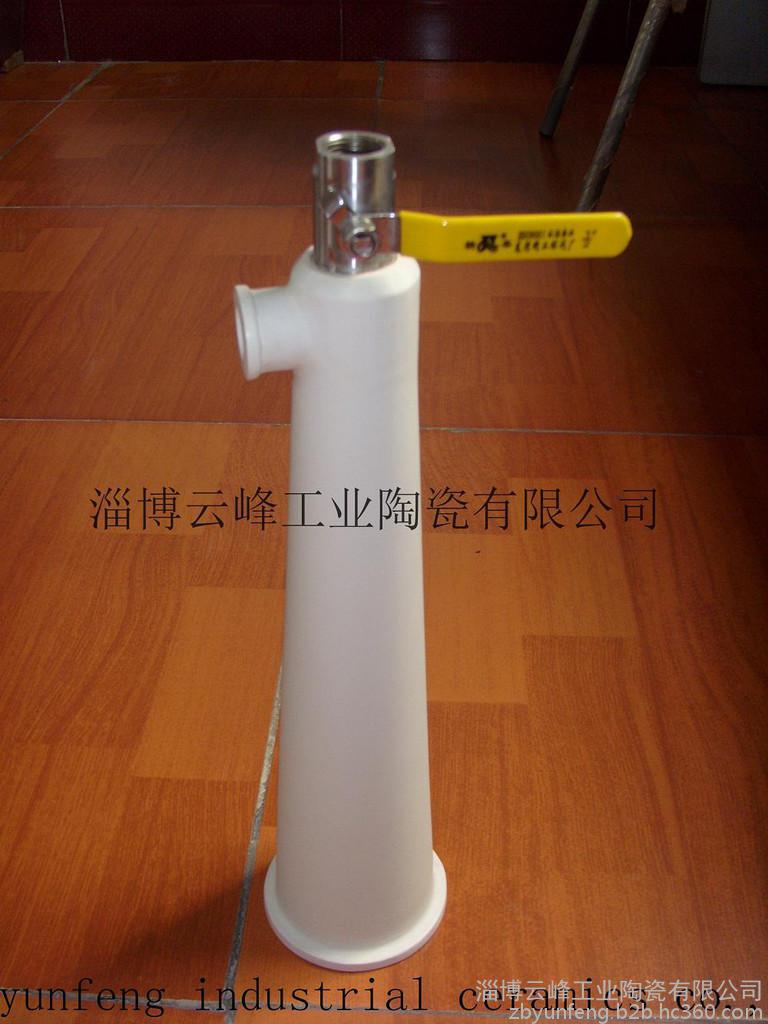

350双壁除渣器广泛用于制浆造纸工业水力旋流系统，从浆料中去除杂质。
主要优点：除渣效率高
双壁设计锥体和头部结构范围广
压力低因而耗能低
整体压力系统使得高温下操作安全，并减空气夹包
每台除渣器都有视镜便于观察
出渣口塞子易拆除
密闭式设计可减少压力泄漏
技术参数
单支通过量： 350L/min
进浆浓度： 0.3-1.2％
进浆压力： O.2-O.35MPa
单段重杂质体积排渣率：6-8％(相对进浆流量)
单段轻杂质体积排渣率：10-12％(相对进浆流量)
product deion:
350 double-walled Cleaner is widely used in the pulp and paper industry hydrocyclone systems, to remove impurities from the slurry.
Main advantages: high efficiency Cleaner
Zibo yunfeng industrial ceramics co., LTD
Cone double-walled design and a wide range of head structure
Low pressure and thus low energy consumption
Overall pressure system allows safe operation at elevated temperatures and reduced air wallets
Each cleaner has a sight glass for easy observation
Easy removal of the slag outlet plug
Closed design reduces pressure leak
Technical Parameters
Single by volume: 350L / min
Into the plasma concentration: 0.3-1.2%
Into the plasma pressure: O.2-O.35MPa
Single-stage volume weight impurities slagging rate: 6-8% (relative feed slurry flow rate)
Single-stage light impurities slagging volume ratio: 10-12% (relative feed slurry flow rate)
