外圆滚压刀外圆滚光刀 外径台阶型滚压刀滚压头 外径滚光刀
外径滚压刀滚光刀滚压头 外径轴滚压刀 外圆滚光刀
注：

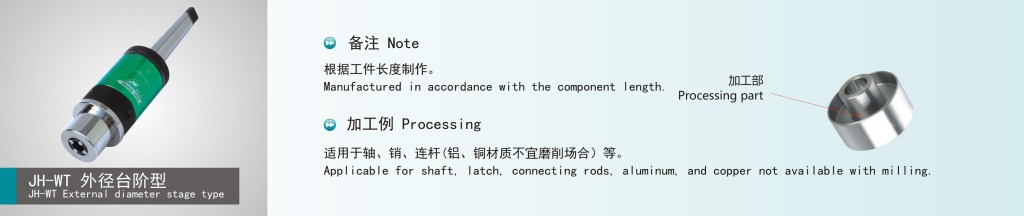

①JH-WT外径台阶型加工长度需订制。
② 对于台阶轴有0.5mm不能加工到底部。
③ 滚压时冷却润滑油必须充分。
④ 工具微调范围0.3~0.4mm。
⑤ 工具型号在JH-WT、JH-WJ后面加上工件直径。
Note:
① Processing length for JH-WT type requires customized production.
② There is 0.05mm beyond processing at the bottom.
③ Add adequate cooling lubricant at rolling.
④ Adjustment rage of the tool: 0.3~0.4mm
⑤ Tool specification is the result hole diameter added to JH-WT and JH-WJ.
