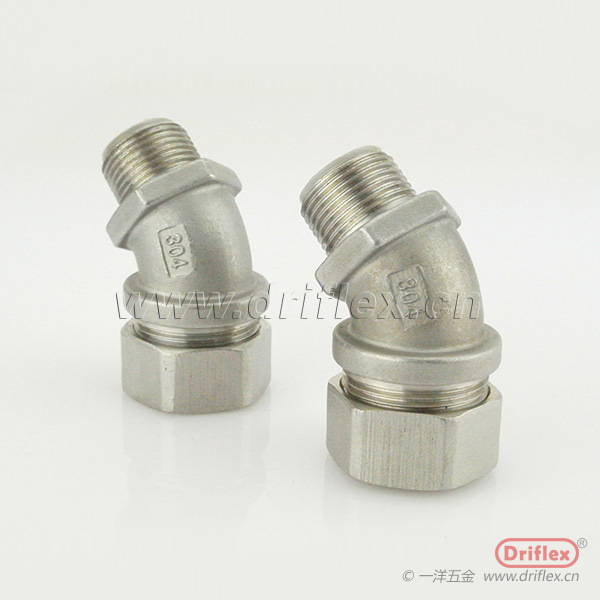

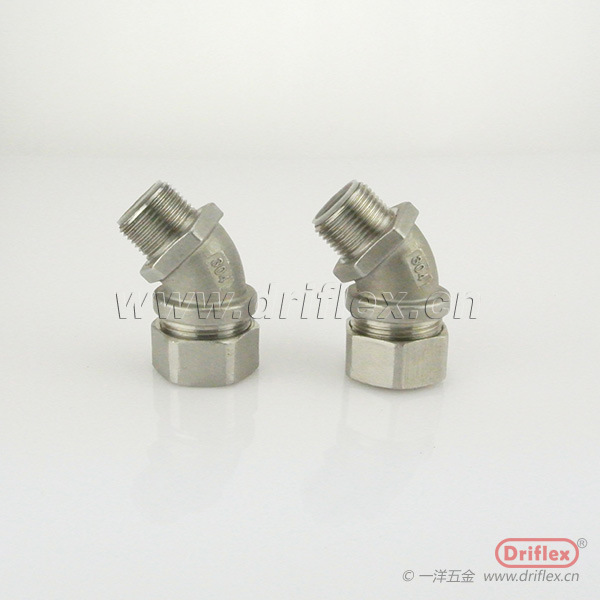

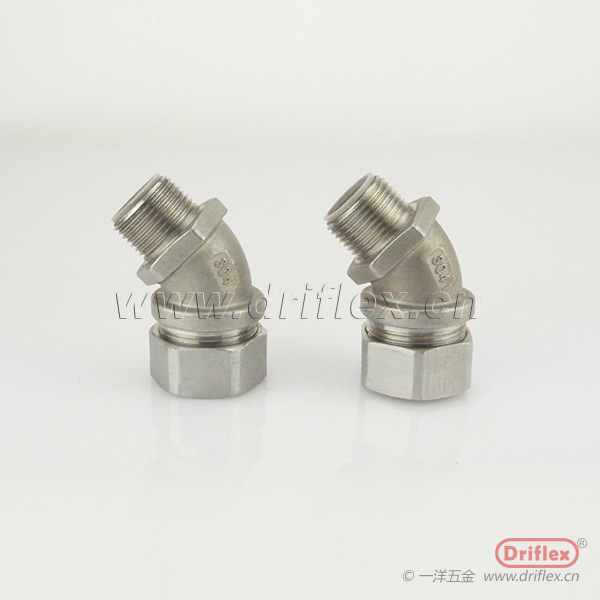

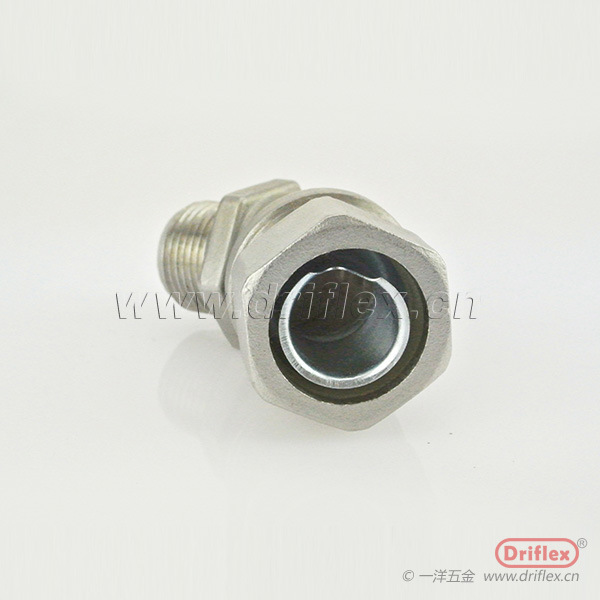

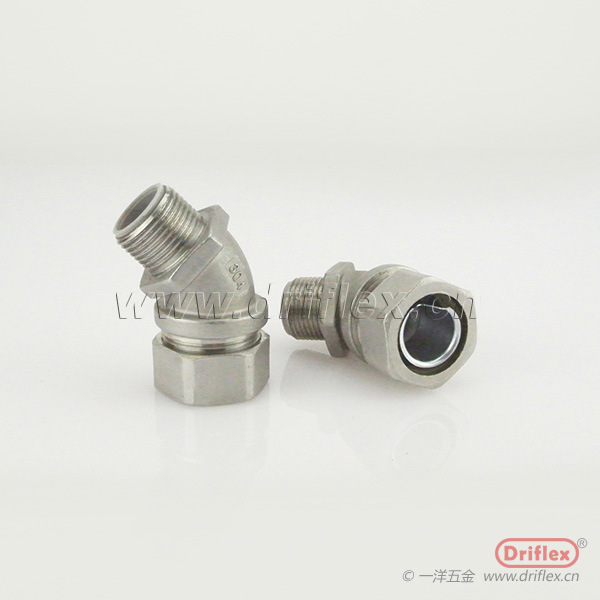

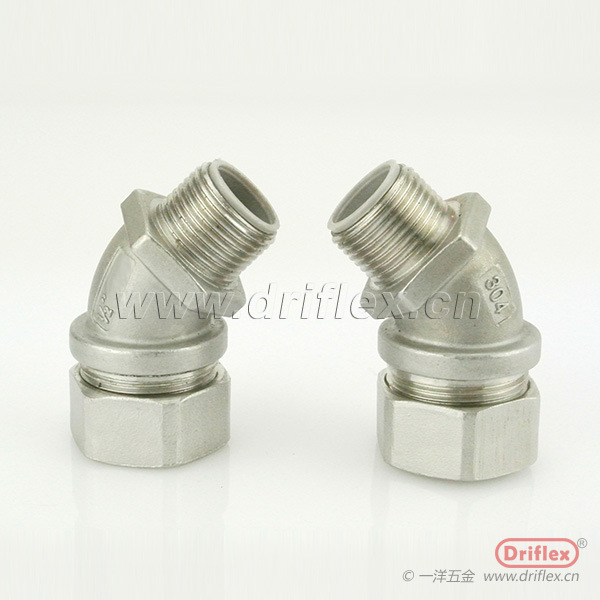

| 防水45度弯头软管连接器（英制/G) | Liquid Tight Conduit 45d Angle | |||||
| 材 质： | 可锻铸铁、铜、不锈钢 | |||||
| 防护等 ： | IP68 | |||||
| 镀 层： | 锌、铬、镍 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型号Part No. | 螺纹标准 | 适配软管(") | 适配软管(mm) | 小头螺纹外径 | ||
| 铁 Iron | 铜 Brass | 不锈钢SS | A(mm) | |||
| LTCG-I309 | LTCG-B309 | LTCG-S309 | G3/8" | 3/8" | Ф12 | 16.7 |
| LTCG-I30 | LTCG-B30 | LTCG-S30 | G1/2" | 3/8" | Ф12 | 21.0 |
| LTCG-I31 | LTCG-B31 | LTCG-S31 | G1/2" | 1/2" | Ф16 | 21.0 |
| LTCG-I32 | LTCG-B32 | LTCG-S32 | G3/4" | 3/4" | Ф20 | 26.4 |
| LTCG-I33 | LTCG-B33 | LTCG-S33 | G1" | 1" | Ф25 | 33.3 |
| LTCG-I34 | LTCG-B34 | LTCG-S34 | G1-1/4" | 1-1/4" | Ф32 | 41.9 |
| LTCG-I35 | LTCG-B35 | LTCG-S35 | G1-1/2" | 1-1/2" | Ф38 | 47.8 |
| LTCG-I36 | LTCG-B36 | LTCG-S36 | G2" | 2" | Ф51 | 59.6 |
