| 10 | ||||||||||
| 10 | ||||||||||

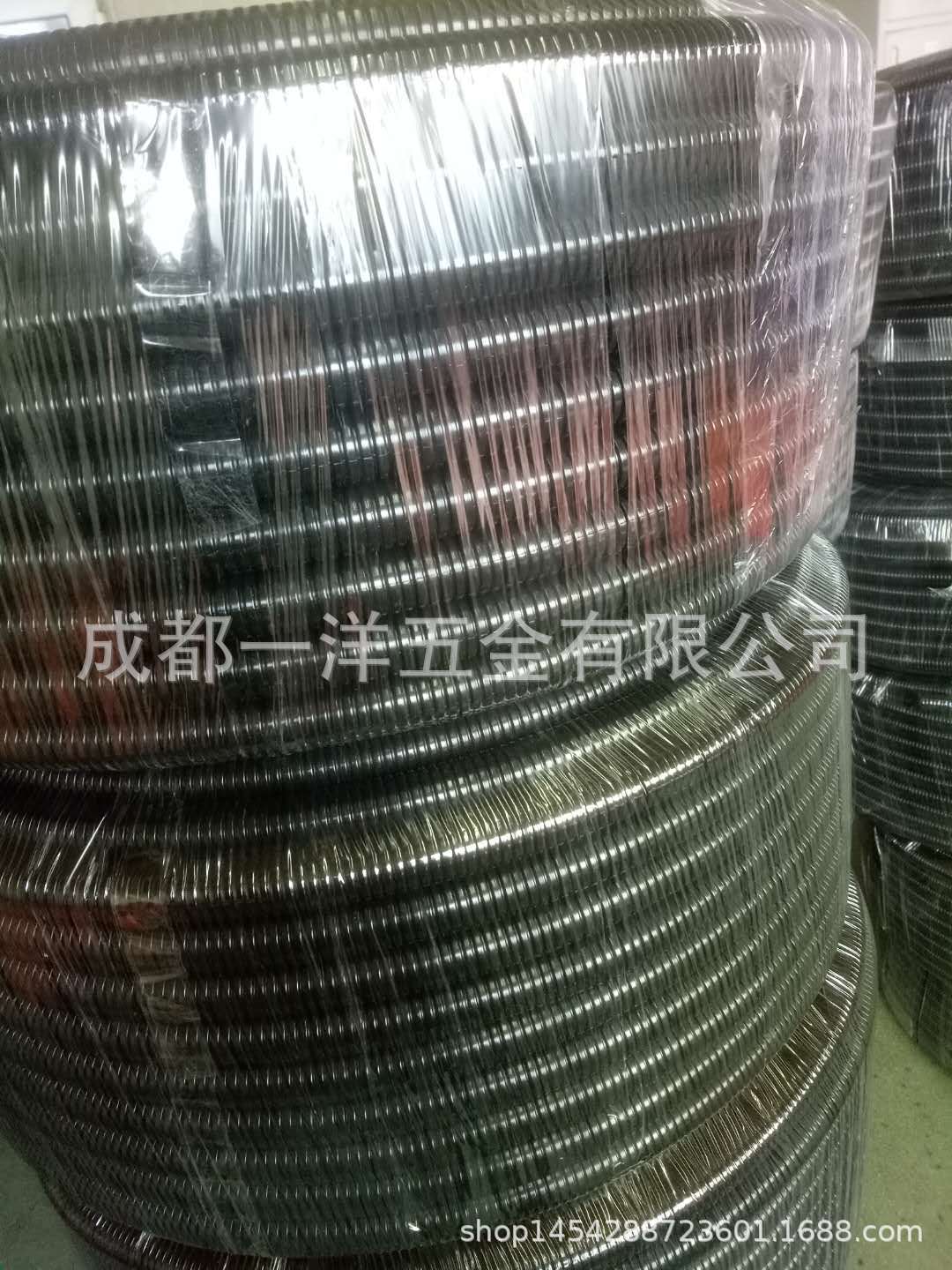

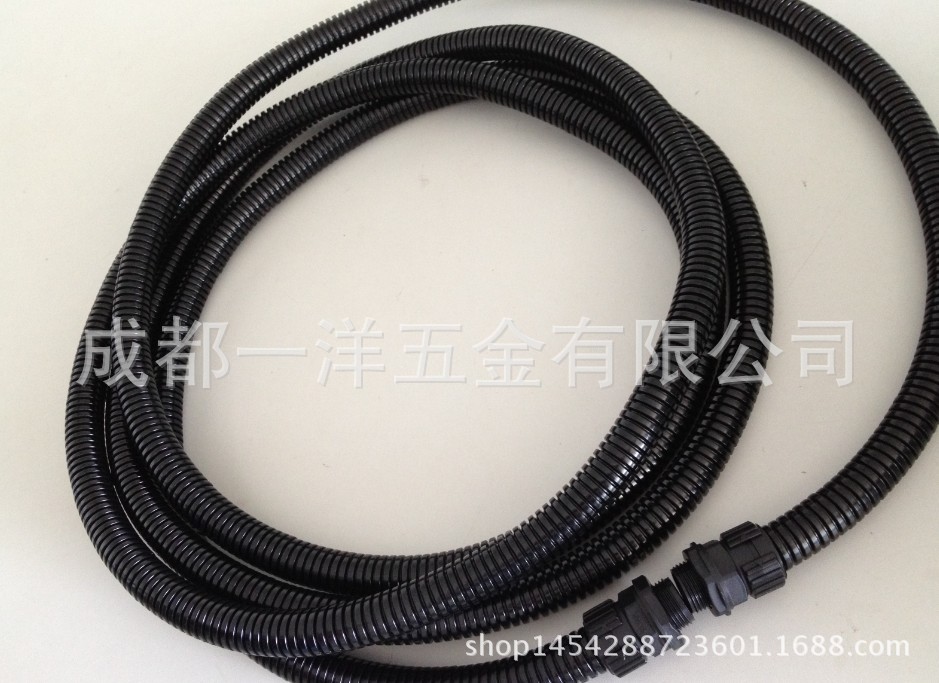

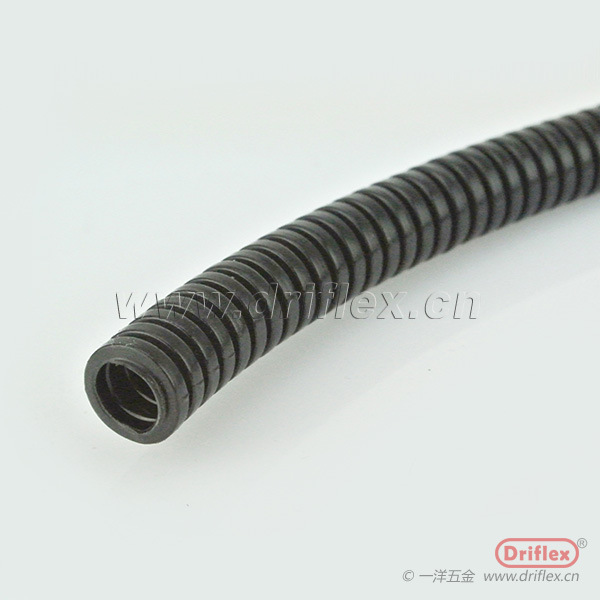

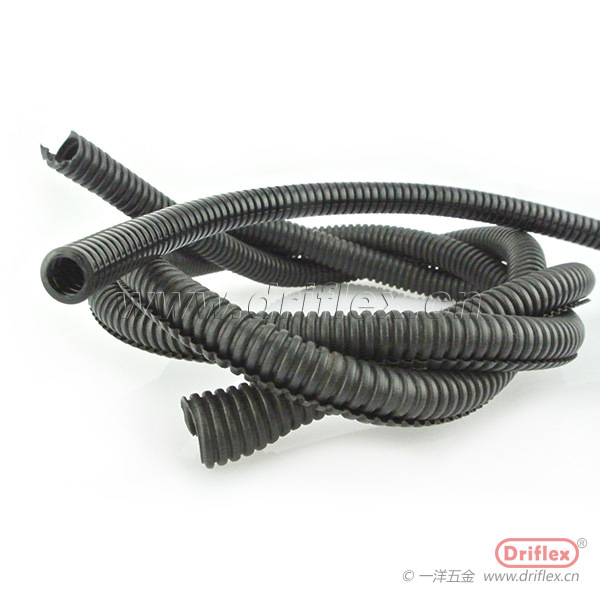

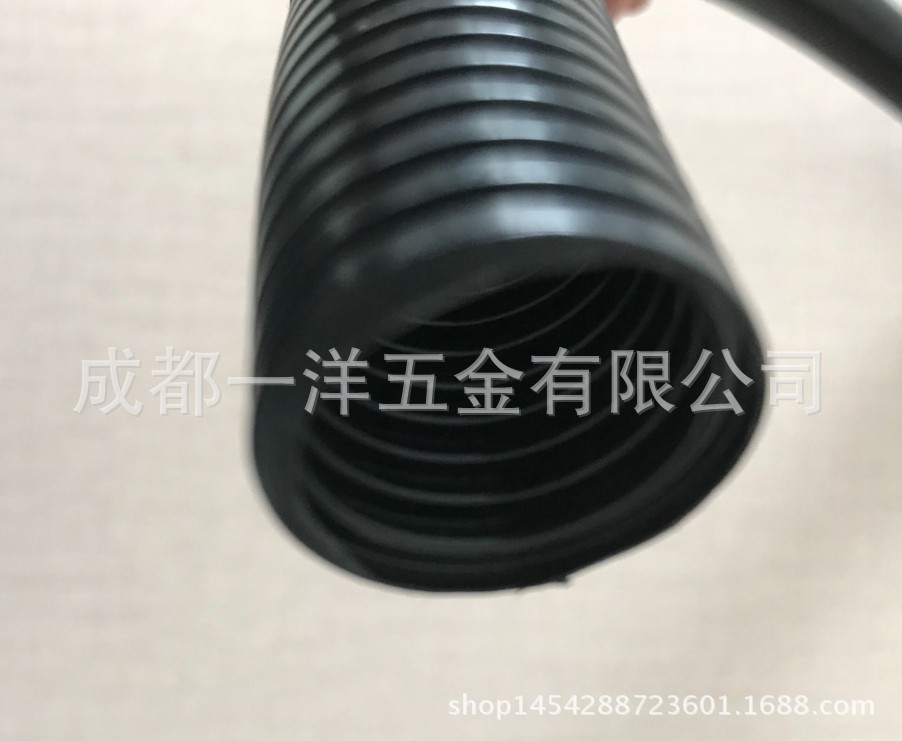

| PP Conduit | ||||||||||
| 材 质： | 聚丙烯 | 型号 Part No. | 内径x外径(mm) | 弯曲半径（mm) | 包装(m/coil) | |||||
| 柔软性高，具有良好的弯曲性，能耐油、耐酸、耐腐蚀，不易燃烧。 | 黑Black | 灰Grey | I.D.x O.D. | Bending Radius | Packing | |||||
| 防护等 ： | IP65 | PPB10 | PPG10 | 6.5x10.0 | 30 | 100 | ||||
| 耐温范围： | -30℃ - +120℃ | PPB11 | PPG11 | 10.0x13.0 | 40 | 100 | ||||
| Materials: | Polypropylene | PPB12 | PPG12 | 12.0x15.8 | 50 | 100 | ||||
| High flexibility and good bending, anti-oil, acid, | PPB13 | PPG13 | 14.3x18.5 | 60 | 100 | |||||
| corrosion, nonflammable. | PPB14 | PPG14 | 17.0x21.2 | 70 | 100 | |||||
| Pretection rating: | IP 65 | PPB15 | PPG15 | 23.0x28.5 | 100 | 100 | ||||
| Temperature range: | -30℃ - +120℃ | PPB16 | PPG16 | 29.0x34.5 | 120 | 50 | ||||
| PPB17 | PPG17 | 36.0x42.5 | 150 | 25 | ||||||
| PPB18 | PPG18 | 48.0x54.5 | 180 | 25 | ||||||
| PPB19 | PPG19 | 56.2x67.2 | 260 | 10 | ||||||
| PPB20 | PPG20 | 66.5x80.0 | 350 | 10 | ||||||
