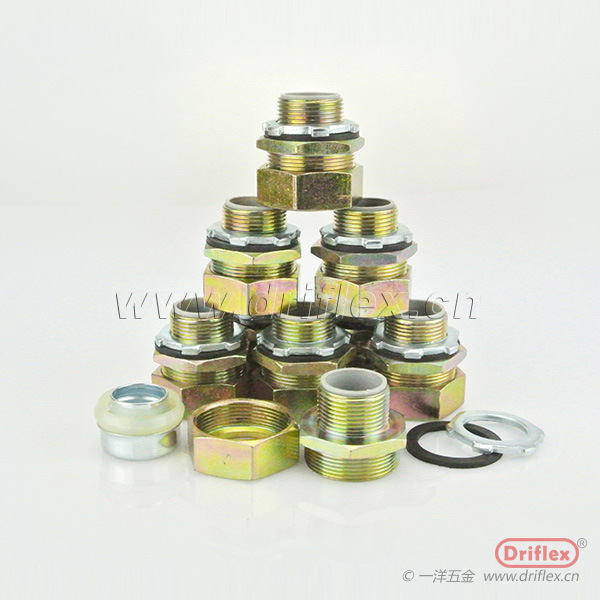

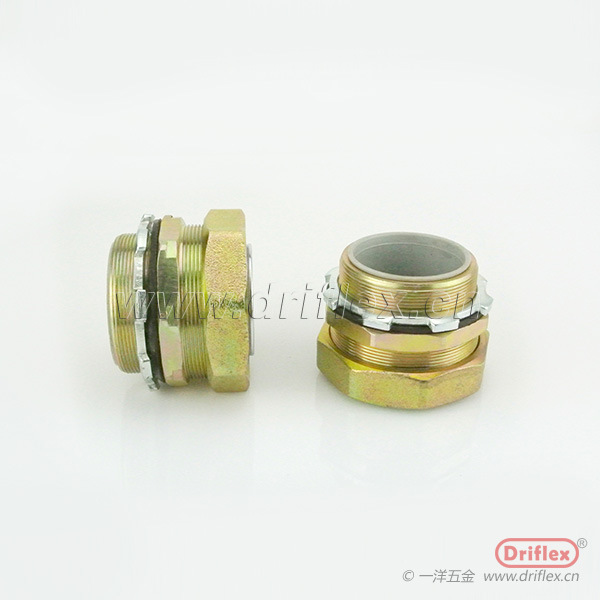

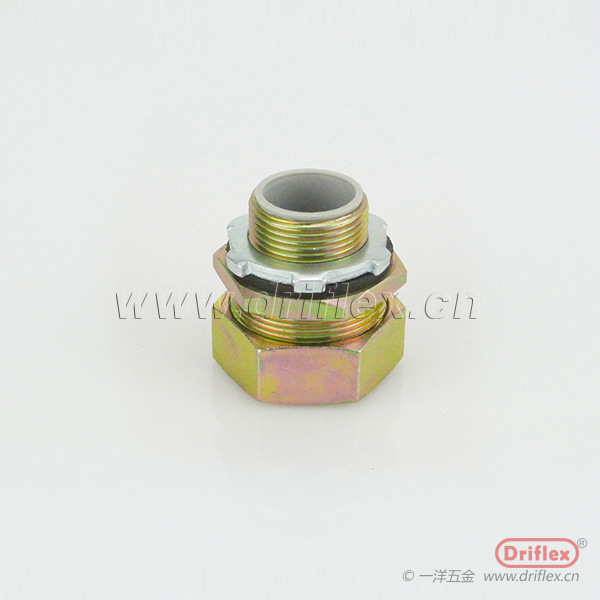

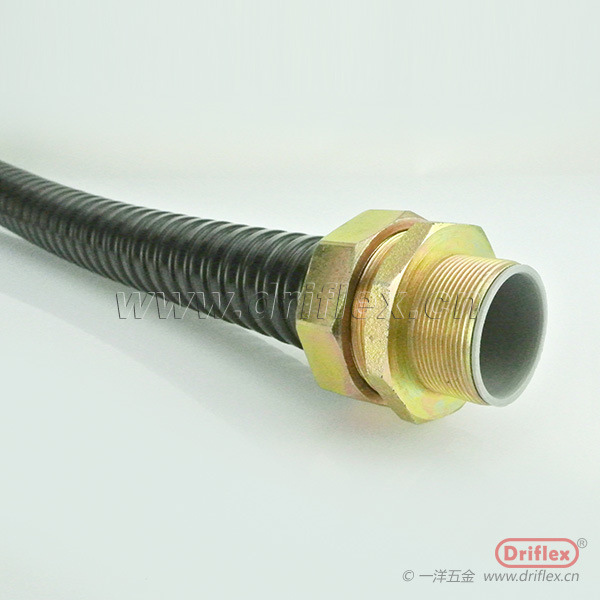

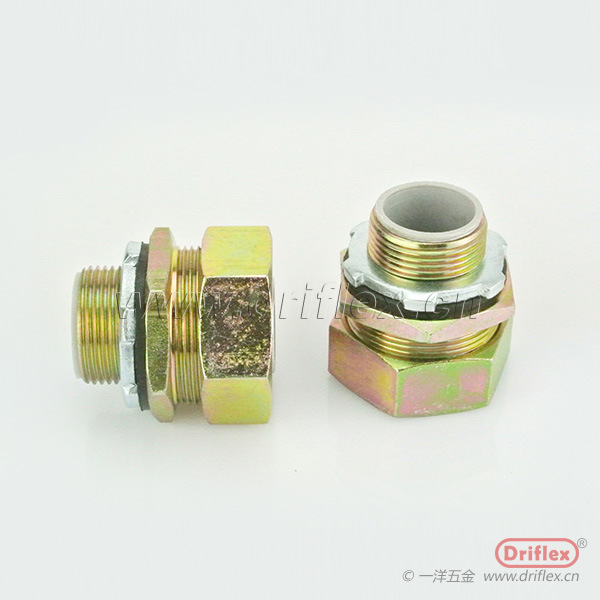

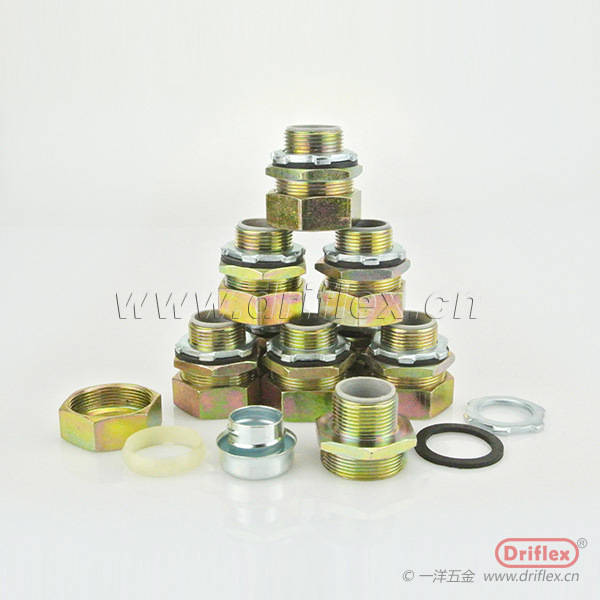

| 防水直头软管连接器（公制/ISO) | Liquid Tight Conduit Straight Connector | |||||
| 材 质： | 铁、铜、不锈钢 | |||||
| 防护等 ： | IP68 | |||||
| 镀 层： | 锌、铬、镍 | |||||
| Materials: | Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型号 Part No. | 螺纹标准 | 适配软管(") | 适配软管(mm) | 小头螺纹外径 | ||
| 铁 Iron | 铜 Brass | 不锈钢SS | A(mm) | |||
| LTCM-I06 | LTCM-B06 | LTCM-S06 | M14 x 1.5 | 3/16" | Ф6 | 14.0 |
| LTCM-I07 | LTCM-B07 | LTCM-S07 | M16 x 1.5 | 1/4" | Ф8 | 16.0 |
| LTCM-I08 | LTCM-B08 | LTCM-S08 | M16 x 1.5 | 5/16" | Ф10 | 16.0 |
| LTCM-I09 | LTCM-B09 | LTCM-S09 | M16 x 1.5 | 3/8" | Ф12 | 16.0 |
| LTCM-I10 | LTCM-B10 | LTCM-S10 | M20 x 1.5 | 3/8" | Ф12 | 20.0 |
| LTCM-I11 | LTCM-B11 | LTCM-S11 | M20 x 1.5 | 1/2" | Ф16 | 20.0 |
| LTCM-I12 | LTCM-B12 | LTCM-S12 | M25 x 1.5 | 3/4" | Ф20 | 25.0 |
| LTCM-I13 | LTCM-B13 | LTCM-S13 | M32 x 1.5 | 1" | Ф25 | 32.0 |
| LTCM-I14 | LTCM-B14 | LTCM-S14 | M40 x 1.5 | 1-1/4" | Ф32 | 40.0 |
| LTCM-I15 | LTCM-B15 | LTCM-S15 | M50 x 1.5 | 1-1/2" | Ф38 | 50.0 |
| LTCM-I16 | LTCM-B16 | LTCM-S16 | M63 x 1.5 | 2" | Ф51 | 63.0 |
| LTCM-I17 | LTCM-B17 | LTCM-S17 | M76 x 2.0 | 2-1/2" | Ф64 | 76.0 |
| LTCM-I18 | LTCM-B18 | LTCM-S18 | M88 x 2.0 | 3" | Ф75 | 88.0 |
| LTCM-I19 | LTCM-B19 | LTCM-S19 | M114 x 2.0 | 4" | Ф100 | 114.0 |
